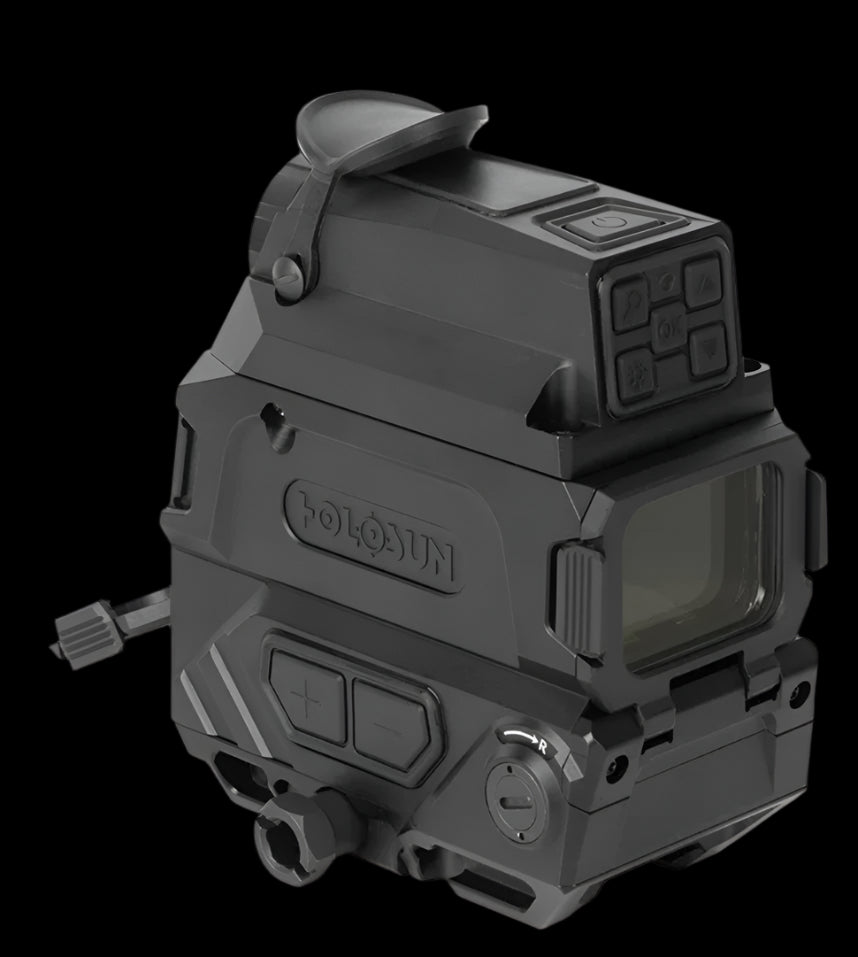

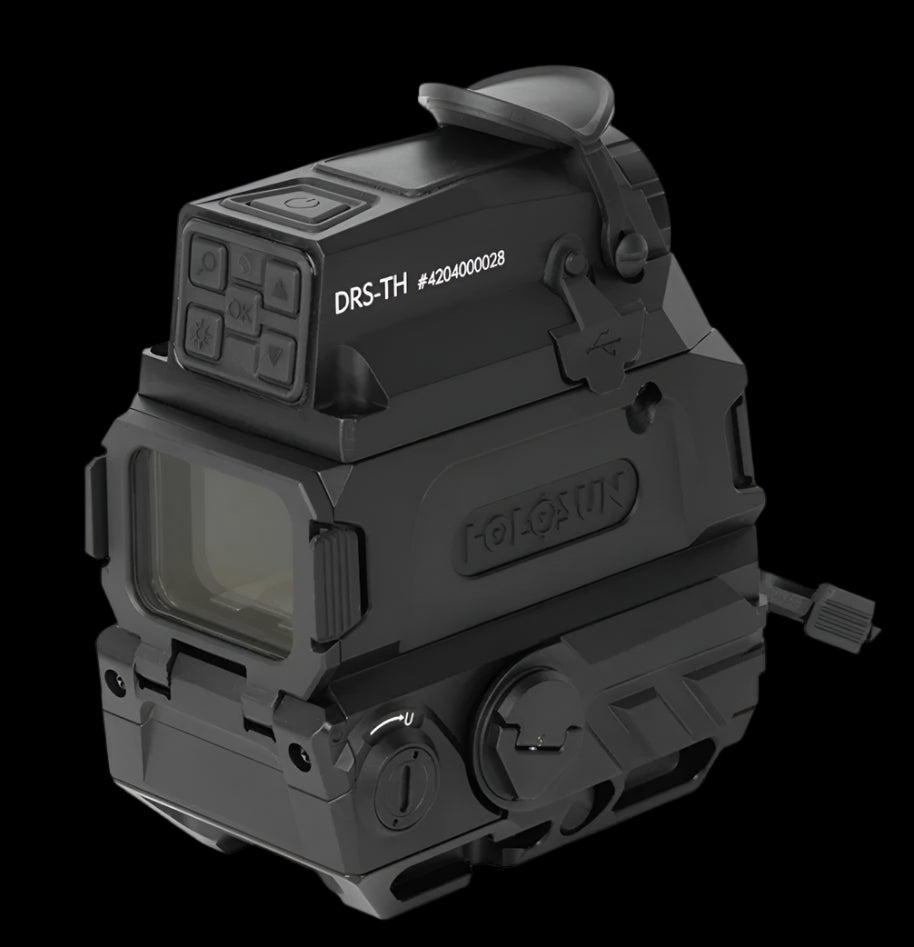

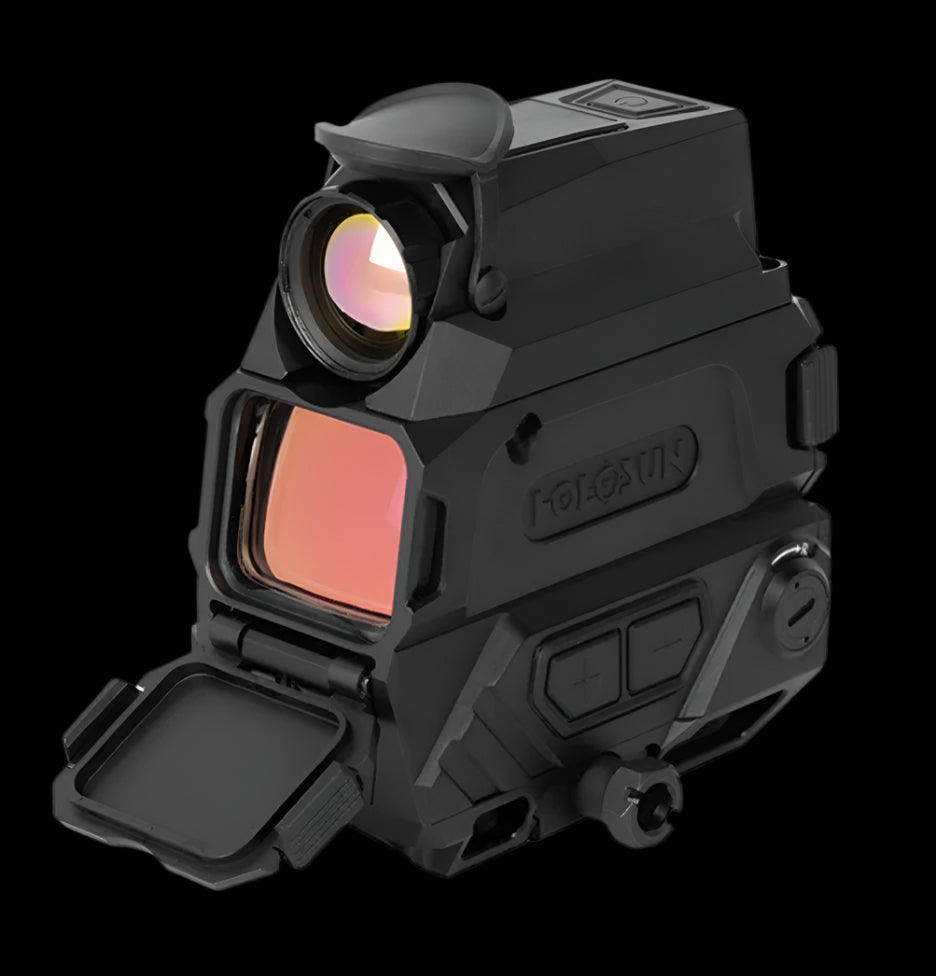

DRS-TH (DIGITAL REFLEX SIGHT THERMAL)
The DRS-TH (Digital Reflex Sight - Thermal) is a red dot and digital thermal fusion sight that combines Holosuns red dot sight technology with thermal imaging capability.
DRS-TH features an LED MRS (Multi-Reticle System) with two digital reticle options, 1024x768 resolution display at 50fps, 8x digital zoom, digital image and video recording with on-board storage, and is powered by an 18350 rechargeable battery.
OPTICAL SPECS
| Reticle | 2 MOA Dot & 65 MOA Circle |
| Light Wavelength | 650nm |
| Reticle Color | Red |
| Parallax Free | Yes |
| Unlimited Eye Relief | Yes |
| Magnification | 1x |
| Multi-Coatings | Yes |
ELECTRONIC SPECS
| Power Source | Battery |
| Battery Type | 18350 |
| Battery Life (Hours) | 10 Hours |
| Thermal Modes | White Hot / Black Hot / Outline / Highlight |
| Digital Modes | Thermal Fusion |
| Video Recording | Internal |
| Screen Refresh Rate | 50 FPS |
| Digital Screen | 1024x768 OLED |
| Brightness Setting | 8 DL & 4 NV |
PHYSICAL SPECS
| Window Size | 1.25×0.98 |
| Dimension (in) | 3.7×2.2×3.5 |
| Weight (oz) | 18.5 |
MECHANICAL SPECS
| Housing Material | 7075 T6 Aluminum |
| Surface Finish | Anodize |
| Adjustment per Click | 0.5 MOA |
| W&E Travel Range | ±50 MOA |
ENVIRONMENT SPECS
| Storage Temperature | -40℃~70℃ |
| Working Temperature | -20℃~51℃ |
| Submersion | IP67 |
| Vibration | 1000G |
MAGNIFICATION SPECS
| Digital Zoom | 1x 3x 5x |
| Transmittance | NA |
| Diopter | NA |
| Field of View | N/A |
| Eye Relief | N/A |
| Exit Pupil | N/A |
| Magnification | Digital |
